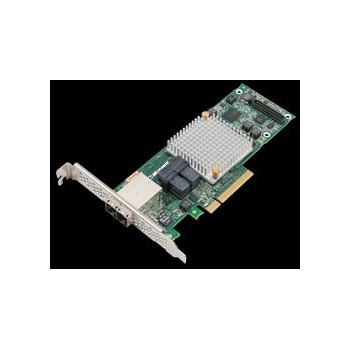

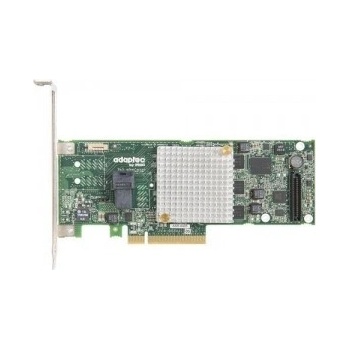

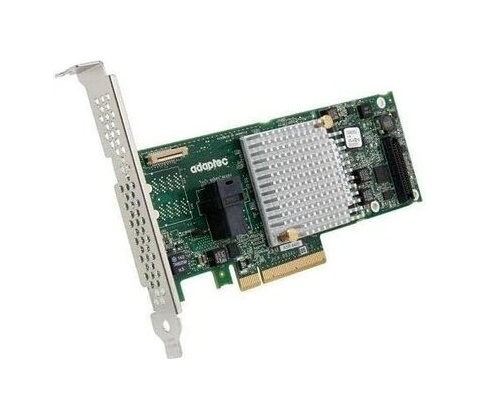

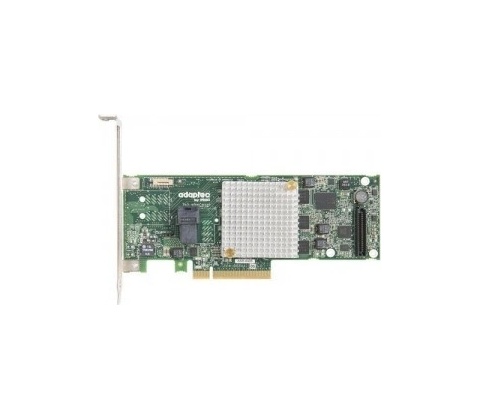

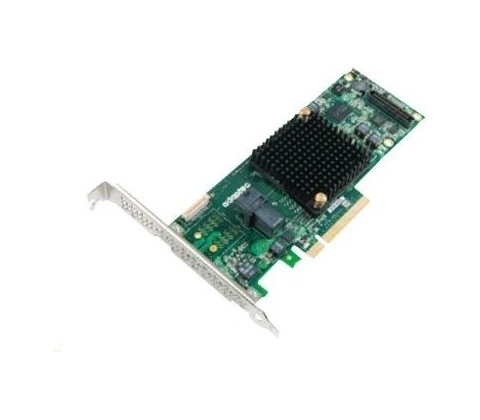

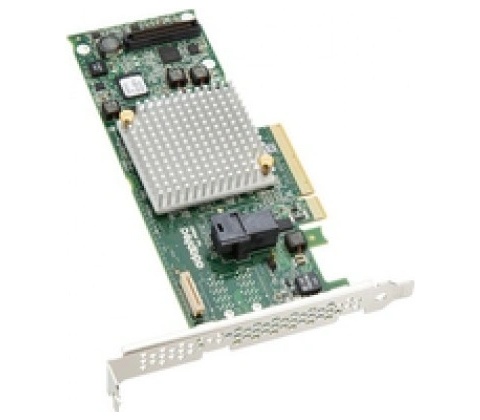

Adaptec 8405

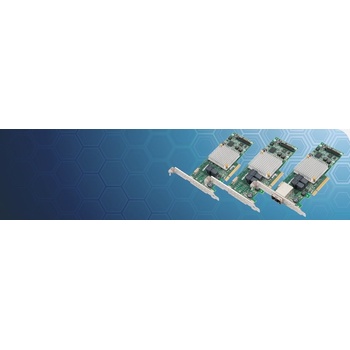

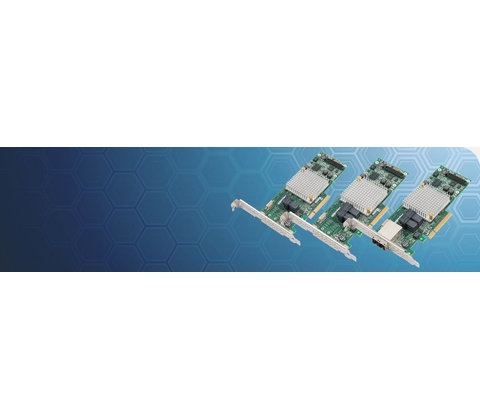

Adaptec Series 8 RAID Adapters

Model # 8405

Mfg. Part Number:

Adaptec 2277600-R, single controller without cables.

Low-profile bracket included

Specifications:

BenefitsIdeal for 12Gb/s performance-hungry server and workstations platforms, without compromising proven Adaptec reliability

Key DifferentiatorsThird generation ZMCP; AFM-700

LP MD2 form factor for up to 4 native SAS/SATA ports

Customer NeedsHigh I/O transaction and high bandwidth processing; solutions that reduce energy consumption and maintenance costs.

Key Software FeaturesFlexible Configuration: HBA Mode & Auto Volume Mode for automatic deploymentOptimized Disk Utilization (Multiple Arrays per disk)Supports up to 256 SAS or SATA devices using SAS expandersSupport for native 4K sector SAS and SATA devices in addition to 512byte sector devicesSupported RAID levels: 0, 1, 1E, 5, 6, 10, 50, and 60Hybrid RAID 1 & 10Quick initializationOnline Capacity ExpansionPerformance modes: Dynamic, OLTP & Big Block ByPassCopyback Hot SpareDynamic caching algorithmNative Command Queuing (NCQ)Background initializationHot-plug drive supportRAID Level MigrationHot spares - global, dedicated, and pooledAutomatic/manual rebuild of hot sparesSES and SAF-TE enclosure managementConfigurable stripe sizeDual FirmwareS.M.A.R.T. supportMultiple arrays per disk driveDynamic sector repairStaggered drive spin-upBootable array supportSupport for Tape Devices, AutoloadersMSI-X support for all device driver for all supported Operating SystemsSecure boot support for the uEFI host biosUSB image available, after shipping, on start.adaptec.com to boot maxView GUI from any USB device for enhanced GUI based setup and offline maintenanceManagement Utilities

Software

Adaptec maxView Storage Manager

Web based GUI Management UtilityOS Support: Windows, Linux, Solaris VMware

Remote configuration, monitoring & notification

Remote firmware updates

SMI-S Support

SMTP

ARCCONF

Command Line Interface

SMI-S support for VMware

Adaptec BIOS Configuration Utility (CTRL+A)

BIOS level configuration utility

Flashable BIOS support

Adaptec uEFI BIOS Configuration Utility

HII based configuration utility

Flashable BIOS support

Operating SystemMicrosoft Windows

Red Hat Linux

SUSE Linux

Fedora

Debian Linux

Ubuntu Linux

Solaris

FreeBSD

VMware ESXi

Data Transfer Rate12 Gb/s per port

Bus System Interfacex8 PCIe 3.0

Form FactorMD2 – Low Profile

Cache Memory1024MB

Connector Configuration8405: one internal mini SAS HD (SFF-8643)

Package ContentsAdaptec RAID 8405 adapter

Additional low profile vented bracket *Single does not include cables

Physical Size2.535"H x 6.6"L (64mm x 167mm)

Operating Temperature0°C to 55°C* (with 200 LFM airflow without AFM-700) 0°C to 50°C* (with 200 LFM airflow with AFM-700)

Note: This Adaptec card contains a powerful RAID processor which requires adequate airflow to operate reliably. Please install this card only into server or PC chassis with recommended airflow (200 LFM). * Ambient temperature measured 1" away from the RAID processor

Operating Voltage0.1A @ 3.3VDC 1.2A @ 12VDC

Regulatory CertificationCE, FCC, UL, C-tick, VCCI, KCC, CNS

Environmental ComplianceRoHS

Mean Time Before Failure (MTBF)645,612 hours at 40°C

Warranty3 years
