Broadcom 9500-8e

HBA 9500-8e Tri-Mode Storage Adapter PCIe Gen 4.0 HBA enables customers to integrate into U.3 backplanes utilizing UBM for maximum flexibility and configuration options The...
13 890 Kč
Doprava zdarma, Do 2 týdnů
Doporučená nabídka AB COM CZECH
Do obchodu

Nejlevnější nabídky (5)

Broadcom 9500-8e

Broadcom 9500-8e
13 890 Kč
Do obchodu
Broadcom 9500-8e
Broadcom HBA 9500-8e karta/adaptér rozhraní Interní SAS (05-50075-01)
14 471 Kč
Do obchodu
Broadcom HBA 9500-8e karta/adaptér rozhraní Interní SAS (05-50075-01)
HBA TriMode 9500-8e(3808) SAS3/NVMe HBA(JBOD) 2×8644,exp:1024HD/32NVMe,PCI-E8 g4,MD2,SGL
15 440 Kč
Do obchodu
HBA TriMode 9500-8e(3808) SAS3/NVMe HBA(JBOD) 2×8644,exp:1024HD/32NVMe,PCI-E8 g4,MD2,SGL
Broadcom HBA 9500-8e, 12Gb/s, NVMe/SAS/SATA, 2x SFF-8644 x4, PCIe 4.0 x8
15 850 Kč
Do obchodu
Broadcom HBA 9500-8e, 12Gb/s, NVMe/SAS/SATA, 2x SFF-8644 x4, PCIe 4.0 x8
Broadcom HBA 9500-8e, 12Gb/s, NVMe/SAS/SATA, 2x SFF-8644 x4, PCIe 4.0 x8
17 086 Kč
Do obchodu
Broadcom HBA 9500-8e, 12Gb/s, NVMe/SAS/SATA, 2x SFF-8644 x4, PCIe 4.0 x8

Podobné produkty

Popis produktu

HBA 9500-8e Tri-Mode Storage Adapter PCIe Gen 4.0 HBA enables customers to integrate into U.3 backplanes utilizing UBM for maximum flexibility and configuration options The...

Parametry produktu

Výrobce
Broadcom

Parametry produktu

Výrobce
Broadcom

Popis produktu

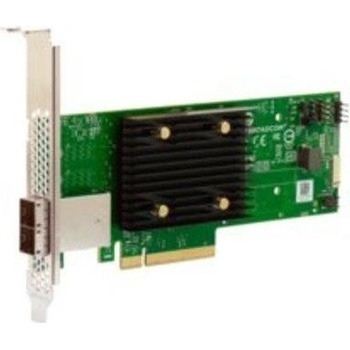

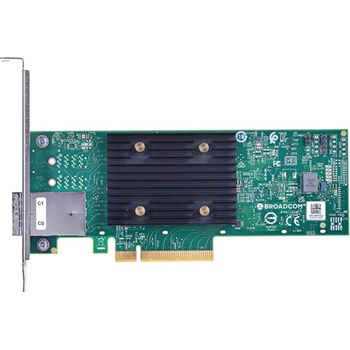

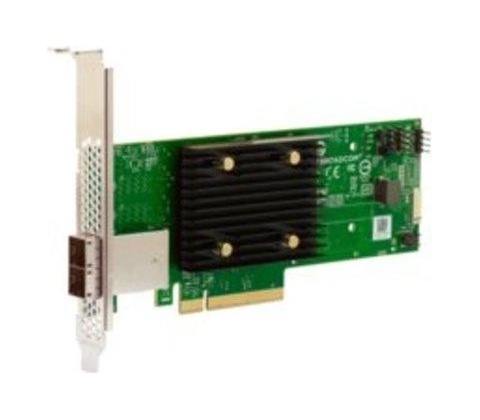

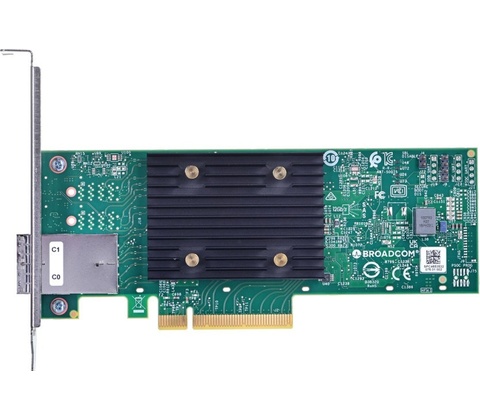

HBA 9500-8e Tri-Mode Storage Adapter

PCIe Gen 4.0 HBA enables customers to integrate into U.3 backplanes utilizing UBM for maximum flexibility and configuration options

The 9500-8e Tri-Mode, PCIe Gen 4.0 HBA with eight external ports is ideal for increased connectivity and maximum performance for enterprise data center flexibility. The HBA features the SAS3808 x8, Gen 4.0 I/O Controller (IOC), making it part of the industry's first HBA family to offer both PCIe Gen 4.0 host and storage interfaces.

With increased bandwidth and IOPS performance compared to previous generations, the 9500-8e adapter delivers the performance and scalability needed by critical applications.

Connects up to 1024 SAS/SATA devices or 32 NVMe devices

Provides maximum connectivity and performance for high-end servers and applications

Support critical applications with the bandwidth of PCIe 4.0 connectivity

Universal Bay Management (UBM) Ready

Specification / Value

  • Lifecycle: Active
  • Typical Power: 6.12W
  • Host Bus Type: x8 lane PCI Express 4.0
  • Physical Dimensions: Low profile 6.600" x 2.712"
  • Devices Supported: SAS/SATA: 1024, NVMe: 32
  • External Connectors: 2 x4 SFF-8644 (ext HD)
  • Internal Ports: 8
  • Operating Temperature: 0°C to 55°C
  • OS Support: Microsoft Windows, VMware vSphere/ESXi, Red Hat Enterprise Linux, SuSE Linux, Ubuntu Linux, Citrix XenServer, CentOS Linux, Debian Linux, Oracle Enterprise Linux, Fedora, FreeBSD
  • I/O Controller: SAS3808
  • MTBF: > 5,000,000 hours at 40° C
  • Operating Humidity :20% to 80% Non-condensing
  • Brackets: Full height and low profile
  • Regulatory Certifications: Australia/New Zealand (AS/NZS CISPR 22), Canada ICES-003 Class B, CE Europe (EN55022/EN55024), Europe (EN55022/EN55024), Japan (VCCI V-3), Korea (RRA no 2013-24 & 25), RoHS, Safety: EN/IEC/UL 60950, Taiwan (CNS 13438), USA (FCC 47 CFR part 15 Subpart B, class B), WEEE
  • Warranty: 3 years, free technical support, advanced replacement option at broadcom.com/support/warranty/internal-raid-hba
  • Management Software :LSI Storage Authority (LSA), StorCLI (Command-Line Interface), HII (UEFI Human Interface Infrastructure)
