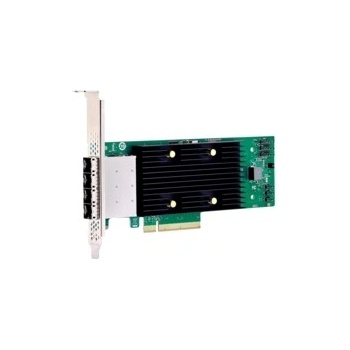

Broadcom 9600-8i8e

eHBA 9600-8i8e Tri-Mode Storage Adapter x8, PCIe 4.0 eHBA features 8 internal and 8 external ports for high-performance and increased connectivity

The 9600-8i8e Tri-Mode, PCIe Gen 4.0 enhanced HBA (eHBA) is ideal for increased connectivity and maximum performance for enterprise data center flexibility.

With increased bandwidth and IOPS performance compared to previous generations, the 9600-8i8e eHBA delivers the performance and scalability needed by critical applications.

Low profile, half-length x8 PCIe Gen 4.0 adapter

Connect up to 240 SAS/SATA devices or 32 NVMe devices

Hardware Secure Boot and SPDM Attestation support

SMART monitoring

Drive temperature monitoring

SafeStore key management for attached SEDs

Universal Bay Management (UBM) Ready

Product

Manufacturer Part #

What's in the Box eHBA 9600-8i8e 05-50145-01 9600-8i8e eHBA, Low Profile Bracket, FH (attached)

Specification

Value

Lifecycle

Active

Distributor Inventory

No

Brackets

Full height and low profile

Data Transfer Rates 22.5, 12 and 6Gb/s SAS and 6Gb/s SATA

Devices Supported

SAS/SATA: 240; NVMe: up to 32

External Connectors 2 x4 SFF-8644

External Ports 8

Generation 24G

Host Bus Adapters x8, PCIe 4.0 eHBA features 8 internal and 8 external ports for high-performance and increased connectivity

Host Bus Type x8 lane PCI Express 4.0

Internal Connectors 1 x8 SFF-8654 (SlimSAS)

Internal Ports 8

Management Software

LSI Storage Authority (LSA), StorCLI (Command-Line Interface), HII (UEFI Human Interface Infrastructure)

MTBF > 5,000,000 hours at 40° C

Operating Humidity 5% to 90% Non-condensing

Operating Temperature°C 0°C to 55°C

OS Support

Microsoft Windows, VMware vSphere, VMware vSphere/ESXi, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, Ubuntu Linux, Citrix XenServer, CentOS Linux, Debian Linux, Oracle Enterprise Linux, Fedora, FreeBSD

Physical Dimensions 6.600" x 2.712"

Regulatory Certifications

Australia/New Zealand RCM (AS/NZS CISPR 32; CISPR 32:2015, Class A; AS/NZS CISPR 32:2015, Class A), Canada EMC (ICES-003:2016 Issue 6: 2016, Class A; CAN/CSA CISPR 22-10; CISPR 22:2008), Europe (CE) (EN 55024, EN 55032, EN 55035; EN 55032:2015 +AC:2016, Class A; EN 55024:2010 +A1:2015; EN 55035:2017 +A11:2020), Korea (KN32/KN35), Taiwan BSMI (CNS 13438; CNS15663), USA/Canada Safety (UL Listed) (UL 62368-1, Second Edition; CAN/CSA C22.2 No. 62368-1-14), USA/Canada (FCC) (47 CFR FCC Part 15, Subpart B, Class A; ANSI C63.4:2014; CISPR 32:2008) CB (IEC 62368-1:2014 (Second edition); EN 62368-1:2014+A11: 2017), Japan (V-3/2015.04, Class A; V-4/2012.04; VCCI-CISPR 32:2016; CISPR 32:2015), Morocco (CMIM) (EN 55024, EN 55032, EN 55035; EN 55032:2015 +AC:2016, Class A; EN 55024:2010 +A1:2015; EN 55035:2017 +A11:2020); RoHS, WEEE

Warranty 3 years, free technical support, advanced replacement option at broadcom.com/support/warranty/internal-raid-hba

What's in the box 9600-8i8e eHBA, Low Profile Bracket, Bracket, FH (attached)
