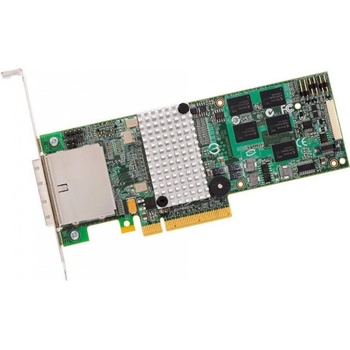

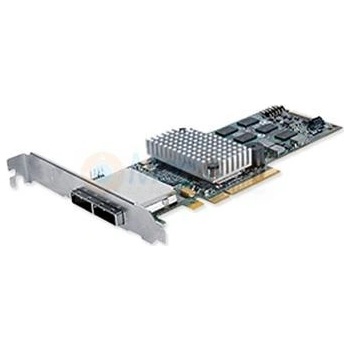

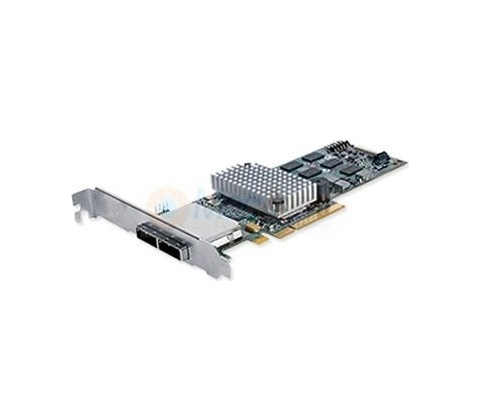

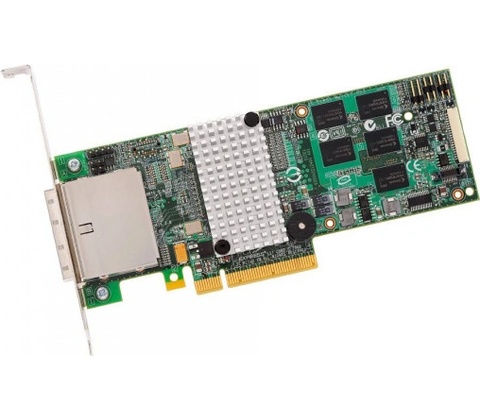

Broadcom 9750-8e

LSI Mega Raid 2108 ( 9750-8e) SATA 3/SAS RAID PCIe karta , 2x SFF-8088 ( 8x HDD) . RAID karta pro Mac / PC , sběrnce PCIe 8x lane , PCIe rev 2,0 , 1 x SFF-8087 Mini SAS , rychlost 6Gbit/ na port , 512MB 800MHz DDR II SDRAM , RAID levels 0, 1, 5, 6,10, 50 a Single Disk . *Four-port internal SATA+SAS solution for high-density servers and workstations using up to 127 devices with the flexibility to use both SATA and SAS hard drives and solid state drives (SSDs).

Key RAID Data Protection Features

RAID levels 0, 1, 5, 6,10, 50 and Single Disk

Rapid RAID Recovery

StreamFusion+

Online Capacity Expansion (OCE)

Online RAID Level Migration (RLM)

Auto resume after loss of system power during array rebuild or reconstruction

Single controller Multipathing

Load Balancing

Variable stripe size support

Fast initialization for quick array setup

Background Task Activity Policies

Multiple logical unit sizes and RAID levels on one card

Bootable array support for greater fault tolerance of your OS

SMTP support for email notification

SNMP support

Emergency Flash Recovery protects against failed firmware upgrade

Up to 32 active units support

Up to 32 drives per unit support

Support for greater than 2TB volumes

S.M.A.R.T support

Staggered drive spin-up support

Drive insertion and removal notification

Global Hot Spare - Automatic rebuild - Enclosure management for SES 2.0 via I2C or in-band signaling

Optional Battery Backup with StorSave BBULSI Mega Raid 2108 ( 9750-8e) SATA 3/SAS RAID PCIe karta , 2x SFF-8088 ( 8x HDD) . RAID karta pro Mac / PC , sběrnce PCIe 8x lane , PCIe rev 2,0 , 1 x SFF-8087 Mini SAS , rychlost 6Gbit/ na port , 512MB 800MHz DDR II SDRAM , RAID levels 0, 1, 5, 6,10, 50 a Single Disk . *Four-port internal SATA+SAS solution for high-density servers and workstations using up to 127 devices with the flexibility to use both SATA and SAS hard drives and solid state drives (SSDs).

Key RAID Data Protection Features

RAID levels 0, 1, 5, 6,10, 50 and Single Disk

Rapid RAID Recovery

StreamFusion+

Online Capacity Expansion (OCE)

Online RAID Level Migration (RLM)

Auto resume after loss of system power during array rebuild or reconstruction

Single controller Multipathing

Load Balancing

Variable stripe size support

Fast initialization for quick array setup

Background Task Activity Policies

Multiple logical unit sizes and RAID levels on one card

Bootable array support for greater fault tolerance of your OS

SMTP support for email notification

SNMP support

Emergency Flash Recovery protects against failed firmware upgrade

Up to 32 active units support

Up to 32 drives per unit support

Support for greater than 2TB volumes

S.M.A.R.T support

Staggered drive spin-up support

Drive insertion and removal notification

Global Hot Spare - Automatic rebuild - Enclosure management for SES 2.0 via I2C or in-band signaling

Optional Battery Backup with StorSave BBU
