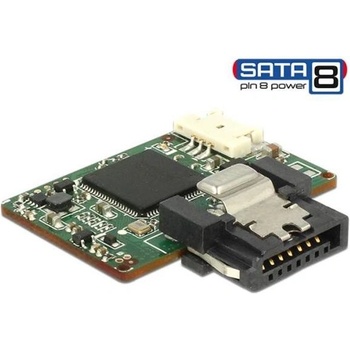

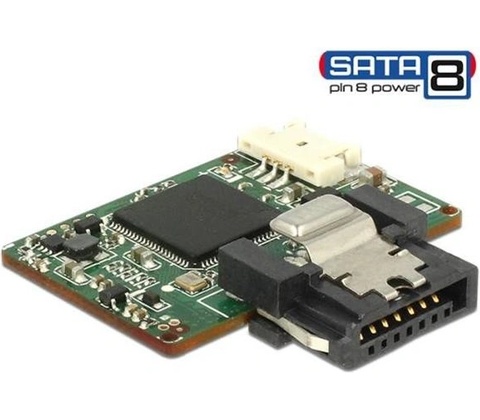

This SATA DOM module by Delock is especially suitable for use in indutrial PCs und Server.
The module has an extended temperature range of -40 ° C ~ 85 ° C and is designed for use in harsh operating conditions.
Advantage: No additional power supply is required as power is provided via the SATA pin 8 connector. To use this application, a motherboard with SATA pin 8 connector is needed. The SATA pin 8 connector on the motherboard is of yellow colour. If no SATA pin 8 connector is available, this module can also be used via the standard SATA connector. For this purpose, the power supply is provided via the 3 pin power connector.
Specifikace
Capacity: 16 GB
Interface: SATA 6 Gb/s
Supports SATA pin 8 power
Chip: Toshiba
Flash type: MLC
Maximum performance: 100 MB/s read, 32 MB/s write
Maximum write cycles: 3000
Maximum power consumption: 1.8 W (5 V x 370 mA)
Write protect: no
ATA Security: yes
S.M.A.R.T.: yes
Thermal sensor: yes
Dimensions (WxLxH): 30 x 28.4 x 7.4 mm
Vibration: 20G @ 7 ~ 2000 Hz
Shock: 1500G @ 0.5 ms
MTBF: >3 million hours
Operation temperature: -40 °C ~ 85 °C - Industrial grade
Storage temperature: -55 °C ~ 95 °C
Systémové požadavky
A free SATA 8 pin or SATA 7 pin port
For SATA 7 pin: power supply with a free 4 pin power connection
Obsah balení
SATA DOM module
Power cable
Balení • Antistatic cover
