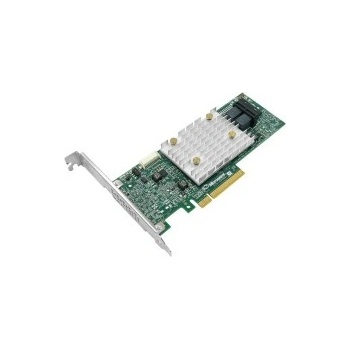

Microsemi 2293200-R

Operating System Microsoft Windows

Red Hat Linux

SUSE Linux

CentOS

Ubuntu Linux

VMware ESXi

For a detailed list see ASK Answer ID 17449. Benefits Ideal for high performing I/O solutions supporting SAS/SATA HDDs and SSDs requiring maximum connectivity. Key Differentiators Ideal for high-performing I/O solutions supporting SAS/SATA HDDs and SSDs requiring maximum connectivity  Customer Needs Provides I/O connectivity that offers the highest bandwidth, lowest latency, and highest I/O performance, paired with broad operating system support, including 12 Gbps and 6 Gbps SATA systems Key Software Features • Support for up to 256 SAS/SATA target devices (238 SSD/HDDs maximum support and remainder are reserved for expanders and enclosure management)

•  Multi-LUN support
•  SAS expander support
•  TLR
•  SATA NCQ
•  Hot Plug Drive
•  S.M.A.R.T.
•  MPIO
•  Multi-Initiator for SAS
•  Enclosure Management
• SES-2, SES-3
• SFF-8485, SGPIO
• SFF-8489, IBPI
•  BMC Support

Management Utilities maxView Storage Manager

•  Web based GUI Management utility
•  OS Support: Windows, Linux, VMware
•  Remote configuration, monitoring & notification
•  Remote firmware updates
•  SMI-S Support
•  SMTP

ARCCONF • Command-line interface

BIOS Configuration Utility (CTRL+A)

•  Legacy configuration utility
•  Flashable BIOS support

uEFI BIOS Configuration Utility

•  Flashable BIOS support
•  HII GUI support Data Transfer Rate 12 Gbps per port Form Factor Low Profile, MD2 Connector Configuration Two internal mini SAS HD (SFF-8643) Package Contents • Microsemi Adaptec HBA 1100-8i adapter
•  Additional low profile vented bracket Physical Size 2.535"H x 6.6"L (64mm x 167mm) Operating Temperature 0°C to 55°C* with 200 LFM airflow. Note: This adapter contains a powerful IO processor which requires adequate airflow to operate reliably. Please install this card only into server or PC chassis with at least 200 LFM airflow.

*Temperature measured 1 inch from adapter. Regulatory Certification CE, FCC, UL, C-tick, VCCI, KCC, CNS Environmental Compliance RoHS Mean Time Before Failure (MTBF) 1.36 million hours

Warranty 3 years
