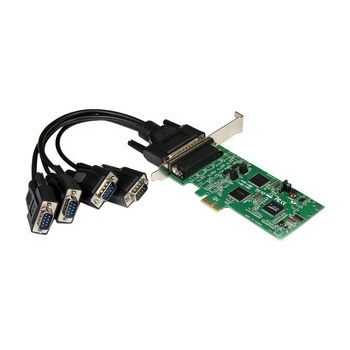

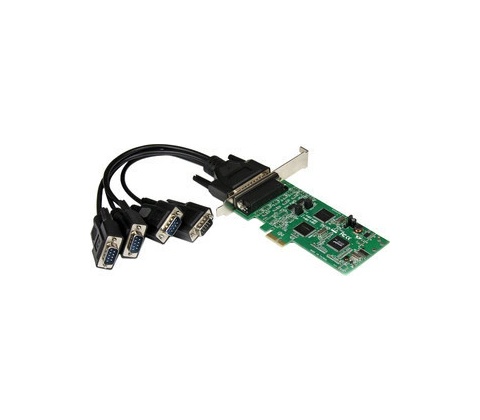

StarTech PEX4S232485

StarTech PEX4S232485 (PEX4S232485) StarTech.com PEX4S232485, PCIe, Sériový, RS-232/422/485, SystemBase

SB16C1052PCI, 256 B, 0 – 100 °C

Úvodní popis

• StarTech.com PEX4S232485. Rozhraní: PCIe, Výstupní rozhraní: Sériový, Typ
• sériového rozhraní: RS-232/422/485. Čipset: SystemBase SB16C1052PCI, FIFO
• (první dovnitř, první ven): 256 B. Podporované operační systémy Windows:

Windows 2000,Windows 2000 Professi­onal,Windows 7 Home Basic,Windows 7 Home

• Basic x64,Windows 7… Šířka: 125 mm, Hloubka: 70 mm, Výška: 20 mm.
• Šířka balení: 210 mm, Hloubka balení: 145 mm, Výška balení: 38 mm

Popis

Add two RS232, and two RS422/485 serial ports to your PC through a PCI-Express expansion slot

The PEX4S232485 4 Port PCI Express PCIe Serial Combo Card – 2 x RS232 2 x

RS422 / RS485 lets you add two RS232, and two RS422/485 serial ports to your PC through a PCI-Express expansion slot.

This PCI express serial card is a single card solution that is compatible with nearly any serial communication protocol, supporting RS-232, RS-422, RS-485 2-wire or RS-485 4-wire operating modes.

A flexible solution for adding serial ports to full-sized, or small form factor systems, the 4-port serial card includes both low and full profile brackets while the included breakout cable helps to avoid cluttered connections.

Backed by a StarTech.com lifetime warranty and free lifetime technical support.

The StarTech.com Advantage - This single PCI Express combo card is compatible with any serial device protocol (RS232, RS422, and RS485), allowing for communication with multiple devices over mixed protocols - Includes both low profile/half-height and full profile brackets to ensure fitment into a broad range of system form factors - The included breakout cable saves expense as an all-in-one solution, and allows the addition of multiple serial ports through a single PCI Express slot
