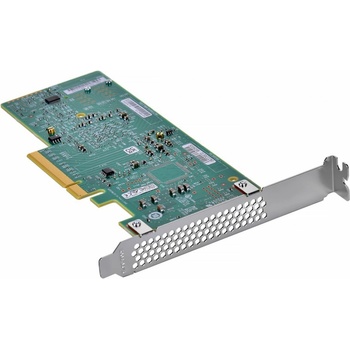

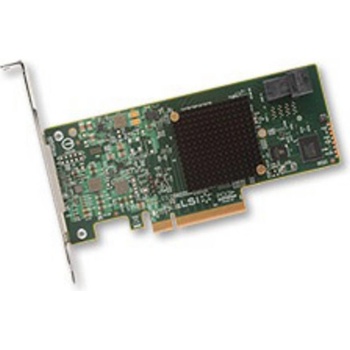

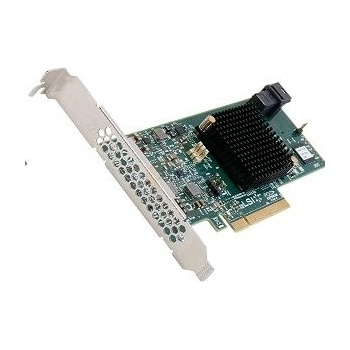

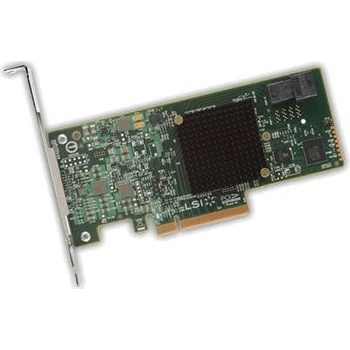

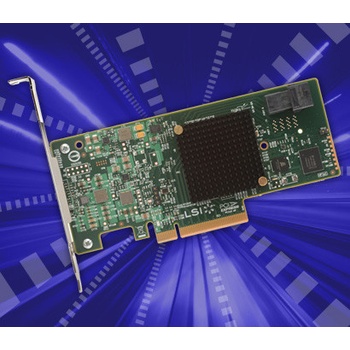

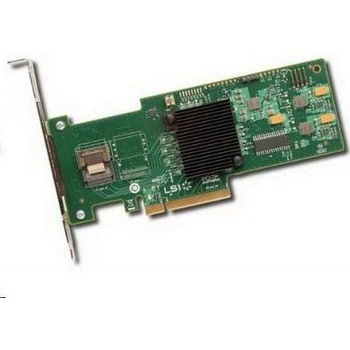

Broadcom 9341-4i

LSI Internal RAID Products

Feature Line MegaRAID Controllers for SATA and SAS Hard Drives 4-port MegaRAID SAS Controller 9341-4i with 4x internal ports

Mfg. Part Number:

• LSI MegaRAID LSI00419 (Avago MPN: 05-26105-00)
• Package includes : MegaRAID SAS 9341-4i, QIG, LP bracket

RoHS compliant

Features & Benefits:

Email, file, SharePoint, and similar critical apps must scale easily over time while remaining both highly protected and easily manageable. That’s where the MegaRAID® SAS 9341-4i 12Gb/s SAS and SATA RAID controller card can add real value. Designed for small and medium businesses (SMBs) with tower and rack-mounted servers, it provides the headroom required for future growth at an affordable price point.

Connect up to 64 SATA or SAS drives in non-RAID (JBOD) mode or 32 drives in RAID mode with  internal 12Gb/s SAS portsSupport high-bandwidth applications with PCIe® 3.0 connectivityFit into 1U/2U rack-mounted servers and compact servers with low-profile form factorBalance protection and performance for critical applications with RAID levels 0, 1, 5, 10 and 50

Specifications:

Physical Dimensions 6.6" x 2.536" (Low-Profile)

RAID-on-Chip Controller

LSISAS3008 PowerPC 476 controller @ 1.2 GHz

RAID Management Software

MegaRAID Storage Manager

StorCLI (command-line interface)

CTRL-R (BIOS configuration utility)

HII (UEFI Human Interface Infrastructure)

Cache Protection -Host Bus Type x8 lane PCI Express® 3.0

Cache Memory -

Internal Ports 4

Data Transfer Rates

Up to 12Gb/s per port

Devices Supported

• Non-RAID (JBOD Mode): 64
• RAID 0: 32 per volume
• RAID 1: 2 per volume plus hot spare
• RAID 5: 32 per volume
• RAID 10: 32 per volume
• RAID 50: 32 per volume

Internal Connectors

One HD Mini-SAS SFF8643 (Horizontal mount)

MTBF >2,800,000 hours

Operating Temperature 0°C to 70°C

Operating Voltage  +12V

Operating Systems

Extensive support includes Microsoft® Windows® Vista/2008/Server 2003/2000/XP, Linux®, Solaris™ (x86), Netware®, FreeBSD®, VMware® and more. * Visit the LSI download Center for the most complete list of supported operating systems: lsi.com/channel/support

Regulatory Certifications

EMC: Class B-US (CFR 47, P15B); Canada (ICES-003); Japan (V-3/02.04); Europe (EN55022/EN55024); Australia/New Zealand (AS/NZS 3548); Safety: EN60950

Warranty 3 years, advanced replacement option, free technical support at lsi.com/support
