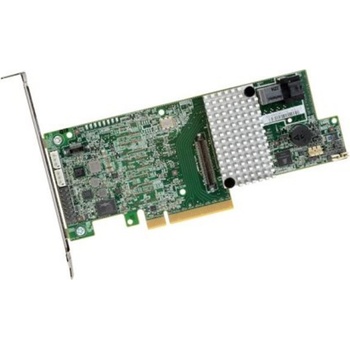

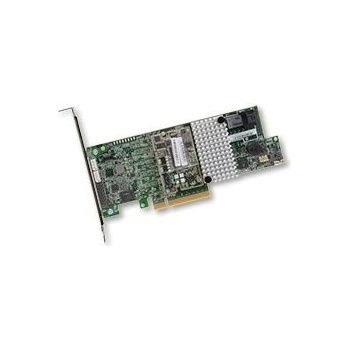

Broadcom 9361-4i

LSI00415

Technical Specification Controller ( RAID ) - Processor

CPU: LSI Logic SAS3108

Controller ( RAID ) - Memory

• Memory Technology: DDR3 SDRAM
• Installed Cache Memory Storage Capacity: 1 GB
• Memory Speed: 1866MHz(PC3-14900)

Controller ( RAID ) - Controller

• Controller Form Factor: Plug-in Card
• Requires Expansion Slot Standard: PCI Express 3.0 x8
• Provides Internal Drive Bay Dimension: Low Profile
• Provides Data Channel: SAS/SATA
• Data Transfer Rate: 12 Gbps
• Number of Input-Output Channels: 4
• Supports Number of Devices: 128
• Supports RAID Level: Level 0

Level 1

Level 10

Level 5

Level 50

Level 6

Level 60

Controller Features: Online Capacity Expansion

Online RAID Level Migration

S.M.A.R.T. Support

Auto-resume on rebuild

Auto-resume on reconstruction

Configurable Stripe Size

Controller ( RAID ) - Interface Provided

Mini SAS Internal Interface Quantity: 1

Controller ( RAID ) - System Requirements

Requires Operating System: Sun Solaris x86

Microsoft Windows Server 2008

FreeBSD

Linux

Microsoft Windows Server 2003

Microsoft Windows XP

Novell Netware

Microsoft Windows Vista

Microsoft Windows Server 2012

Microsoft Windows 7

Microsoft Windows 8

Controller ( RAID ) - Environment

Maximum Operating Ambient Temperature: 55 °C

Controller ( RAID ) - Miscellaneous

Package Type: Retail

Warranty and LogisticWarranty

• Warranty Products Returnable: Yes
• Warranty Term (month): 36 month(s)
• Warranty Validation Criteria: Serial Number

Logistic

• Pack Length (mm): 152 mm
• Pack Height (mm): 44 mm
• Pack Weight Brutto (kg): 0.46 kg
• Pack Width (mm): 267 mm
• Packs in Box: 1
• Pieces in pack: 1
