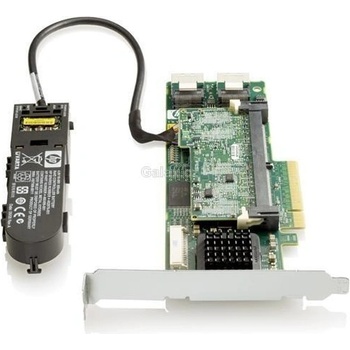

HP Smart Array P410/512MB BBWC

http://h18004.www1.hp.com/products/quickspecs/13201_div/13201_div.HTML

The HP Smart Array P410 is HP's PCI Express (PCIe) 2.0 Serial Attached SCSI (SAS) RAID controller. The low profile, half height card has 8 ports and utilizes DDR2-533 memory. The P410 is ideal for RAID 0, 1, 1+0, 5, 5+0 and can be upgraded with a minimum 256MB cache module, battery kit (for BBWC), and Smart Array Advanced Pack license key for RAID 6 (ADG), & 6+0.

Technical Specifications

Dimensions (not including bracket)

Low Profile PCIe Form Factor 7.5 in x 9.5 in x 2.25 in (19.05 cm x 24.13 cm x 5.72 cm)

Disk Drive and Enclosure Interface - Transfer rate 3G SAS (Serial Attached SCSI) 1.5G SATA (Serial ATA)

SAS Connectors 2 internal (Mini-SAS) x8 wide port connectors

Cache Memory Speed

DDR2-533MHz with 40 or 72-bit wide bus provides up to 4.2 GB/s maximum bandwidth.

Server Interface x8 2.5G PCIe 2.0 provides 2GB/s maximum bandwidth

SAS Speed x8 3G SAS provides 2.4GB/s maximum bandwidth

Cache Memory 40-bit 256MB ECC protected cache (72-bit 512MB BBWC module upgrades available); transportable with battery-backed upgrade

Logical Drives Supported

Up to 32 logical drives

Maximum Logical Drive Capacity

Greater than 2TB

Host Memory Addressing 64-bit, supporting greater than 4GB server memory space

RAID Support

RAID 6, 6+0 (Advanced Data Guarding)

NOTE: The minimum of 256 MB cache, battery kit, and Smart Array Advanced Pack License Key upgrade is required to enable RAID 6, 6+0

RAID 5, 5+0 (Distributed Data Guarding)

NOTE: The 256 MB & Battery Kit upgrade is required to enable RAID 5, 5+0 support of the Smart Array P410i

RAID 1+0 (Striping & Mirroring)

RAID 0 (Striping)

Upgradeable Firmware

Upgradeable Firmware with recovery ROM feature

Tape Solutions

SAS Tape Drives

HP StorageWorks DAT 160 SAS Internal Tape Drive

Q1587A

HP StorageWorks DAT 160 SAS External Tape Drive

Q1588A

HP StorageWorks LTO-2 Ultrium 448 SAS Internal Tape Drive

DW085A

HP StorageWorks LTO-2 Ultrium 448 SAS External Tape Drive

DW086A

HP StorageWorks LTO-3 Ultrium 920 SAS Internal Tape Drive

EH847A

HP StorageWorks LTO-3 Ultrium 920 SAS External Tape Drive

EH848A

HP StorageWorks LTO-4 Ultrium 1760 SAS Internal Tape Drive

EH919A

HP StorageWorks LTO-4 Ultrium 1760 SAS External Tape Drive

EH920A

HP StorageWorks 1U SAS Rack-mount kit with one LTO-4 Ultrium 1760

EH946A

HP StorageWorks LTO-4 Ultrium 1840 SAS Internal Tape Drive

EH860A

HP StorageWorks LTO-4 Ultrium 1840 SAS External Tape Drive

EH861A

Rack-mount Tape Drive Enclosures

HP StorageWorks 1U SAS Rack-Mount Kit

NOTE: The 1U SAS Rack-Mount Kit can support up to (2) half-height tape drives and is compatible with the DAT 160 SAS, LTO-2 Ultrium 448 SAS, LTO-3 Ultrium 920 SAS and LTO-4 Ultrium 1760 SAS tape drives.

AE459A

HP StorageWorks 3U SAS Rack-mount Kit

NOTE: The 3U Rack-mount Kit can support up to (2) full-height or (4) half-height tape drives and compatible with multiple SAS tape drives including DAT 160 SAS, LTO-2 Ultrium 448 SAS, LTO-3 Ultrium 920 SAS, LTO-4 Ultrium 1760 SAS and LTO-4 Ultrium 1840 SAS tape drives.

AG576A

Tape Autoloaders

HP StorageWorks 1/8 G2 LTO-4 Ultrium 1760 SAS Autoloader

AK377A

HP StorageWorks 1/8 G2 LTO-3 Ultrium 920 SAS Autoloader

AH558A

Tape Libraries

HP StorageWorks MSL2024 1 LTO-4 Ultrium 1760 SAS Drive Library

AK378A

HP StorageWorks MSL2024 1 LTO-3 Ultrium 920 SAS Drive Library

AH559A

HP StorageWorks MSL4048 1 LTO-4 Ultrium 1760 SAS Drive Library

AK380A

HP StorageWorks MSL4048 1 LTO-3 Ultrium 920 SAS Drive Library

AH560A

HP StorageWorks MSL8096 2 LTO-4 Ultrium 1760 SAS Drive Library

AK382A

HP StorageWorks MSL8096 2 LTO-3 Ultrium 920 SAS Drive Library

AH561A

SAS Cables for Tape Drives 4M External Mini SAS to Mini SAS (SFF8088) 3x/1x External Split SAS Cable

NOTE: This split cable connects internally to SAS Hard Drive Cage (3x) and externally to the HP Storage Works 1U SAS Rack-Mount Kit (1x) with other connector going to internal SAS Controller port inside the server. Requires additional PCI slot on server for threading 1x split cable to SAS tape.

AE464A 2M External Mini-SAS (SFF8088) to Mini-SAS (SFF8088) 1x SAS Cable

NOTE: Use this cable to connect HP StorageWorks SAS external tape devices to HP SAS controllers with external Mini-SAS (SFF8088) connectors.

AE470A 4M External Mini-SAS (SFF8088) to Mini-SAS (SFF8088) 1x SAS Cable

NOTE: Use this cable to connect HP StorageWorks SAS external tape devices to HP SAS controllers with external Mini-SAS (SFF8088) connectors.

AE465A 4M External Mini-SAS (SFF8088) to Internal Mini-SAS (SFF8087) 3x/1x Split SAS Cable

NOTE: This split cable connects internally to SAS Hard Drive Cage (3x) and externally to the tape device (1x) with other connector attaching to the Smart Array P400i controller inside a DL360 G5 or DL365 G5 server. The 1x cable occupies additional PCI slot on the server.

AG452A 2M External Mini-SAS (SFF8088) 1x to Mini-SAS (SFF8088) 4x fanout SAS Cable

NOTE: Use this cable to connect HP StorageWorks MSL SAS Tape Libraries to Mini-SAS (SFF8088) ports.

AN975A 4M External Mini-SAS (SFF8088) 1x to Mini-SAS (SFF8088) 4x fanout SAS Cable

NOTE: Use this cable to connect HP StorageWorks MSL SAS Tape Libraries to Mini-SAS (SFF8088) ports.

AN976A

HP StorageWorks Mini-SAS Cable for LTO Internal Tape Drive

AP746A

HP StorageWorks Mini-SAS Cable for DAT Internal Tape Drive

AP747A

HP StorageWorks 2m External Mini-SAS 3x/1x Split SAS Cable

AP748A

HP StorageWorks 4m External Mini-SAS 3x/1x Split SAS Cable

AP749A
